LoRaWAN and IoT: What businesses should know about the network

LoRaWAN is a specialized wireless network designed for the Internet of Things (IoT). It enables devices to communicate wirelessly over long distances with low energy consumption, making it especially suitable for wide-ranging and energy-efficient IoT applications in agriculture, industry, and urban areas.

LoRa vs. LoRaWAN explained

The term LoRa relates closely to the underlying radio technology. LoRa and the associated network protocol form the backbone for many IoT solutions. LoRaWAN is a bit-level IoT protocol that ensures organized and efficient data transmission. By contrast, the LoRa standard (Long Range) is a specific radio technology, or transmission method. It is responsible for the actual data transfer between devices within a LoRaWAN network.

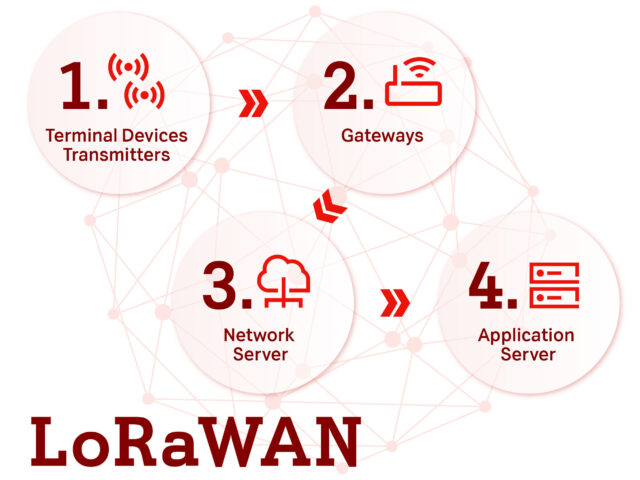

How LoRaWAN works

A LoRaWAN network relies on a unique architecture that connects vast numbers of devices. Its layers consist of four main components, creating a robust and scalable network framework. The communication is bidirectional, meaning devices can both send and receive data.

1. End Devices/Sensors: The devices contain battery-operated sensors to collect data. Thanks to their low power usage, they can operate for extended periods without frequent battery replacements.
2. LoRaWAN Gateways: These sensors transmit data to a network server. Acting as a bridge, gateways link the wireless sensors with the network's central control layer. LoRaWAN employs a star architecture, which allows multiple end devices to communicate via a single gateway.
3. Network Server: This component processes the data received from gateways, verifies it for accuracy, and ensures its secure transfer to corresponding applications. The server also manages devices in the network, including authentication and security protocols.
4. Applications: At the highest level lie the applications, or platforms, that utilize the data collected from end devices. These could be IoT platforms used by businesses to analyze environmental data or manage machinery.

Careful network planning is important when building a LoRaWAN network. Companies often start with a pilot project to assess future network coverage realistically. On that basis, gateway locations, end-device integration, and further rollouts can be planned in a targeted way.

LoRaWAN frequencies and regulatory requirements

LoRaWAN data transmission is based on frequency bands. These frequencies are specifically intended for low-bandwidth, long-range applications. If certain conditions are met, they can be used free of charge, meaning no fees apply. In Europe, the 868 MHz band is mainly used, while the 915 MHz band is common in North America. Companies implementing LoRaWAN networks must therefore pay attention to country-specific regulations. For international rollouts, it is important to review site-specific requirements at an early stage.

In Europe, ETSI (the European Telecommunications Standards Institute) regulates the requirements for using the 868 MHz band. This includes limits on transmission power and usage time to prevent overload of public frequencies. Similar regulations apply in other regions, including the United States and Asia.

LoRaWAN for efficient IoT solutions with low costs

The LoRaWAN protocol offers a powerful solution for businesses needing widespread, energy-efficient communication. Additionally, it is a cost-effective alternative that keeps infrastructure and operational costs low.

• Cost saving: LoRaWAN can cover extensive areas with minimal gateways, reducing installation and operational expenses.
• Energy efficiency: LoRaWAN sensors consume minimal power and often operate for years on a single battery, reducing maintenance demands.
• Long range: With coverage of up to 15 kilometers, LoRaWAN is ideal for wide areas, making it particularly attractive for IoT applications in rural regions.
• Scalability: LoRaWAN seamlessly integrates multiple devices and sensors into a network without compromising stability.
• Battery life: Devices transmit small data packets at intervals, allowing them to operate for extended periods without battery changes, something especially valuable for hard-to-access locations.
• Operational efficiency: A LoRaWAN network often requires less infrastructure, reduces maintenance effort, and lowers ongoing operating costs. Typical savings arise during installation and in the operation of distributed monitoring points.

These attributes allow businesses to leverage the LoRaWAN technology sustainably and economically, especially for large-scale applications. Initial investments can be quickly offset by savings from license-free frequency usage and low maintenance.

Can LoRaWAN be integrated with existing enterprise systems?

The Long Range Wide Area Network is designed to work seamlessly with existing technologies and networks, whilst the compatibility with popular IoT protocols allows it to work effectively in diverse environments. LoRaWAN sensors and gateways can easily be integrated into existing cloud-based data processing systems.

It can also be connected to existing IoT platforms as well as ERP, MES, or SCADA systems, since LoRaWAN often communicates through standardized API interfaces. This allows companies to transfer readings, statuses, and alarms directly into dashboards, cloud platforms, and existing processes.

The network can also be expanded with new sensors or devices without significant changes to the existing infrastructure, which makes it easier to scale IoT projects step by step. Depending on requirements, a LoRaWAN network can be operated as a private network, a managed solution, or a hybrid model. This reduces the need for extensive system modifications and helps control costs.

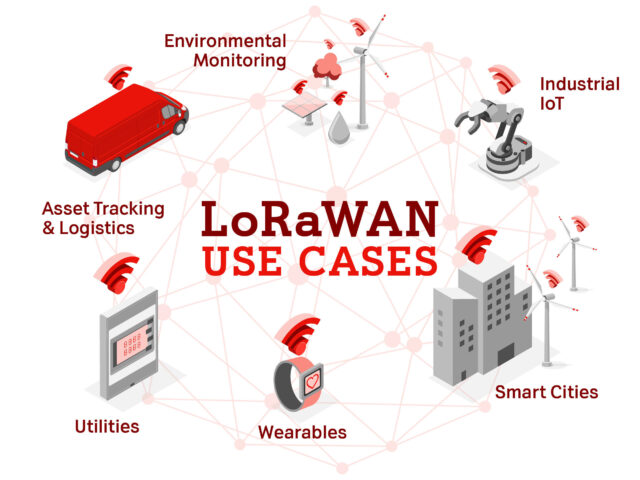

Use Cases for LoRaWAN – From Smart Cities to Industry 4.0

A number of industries have successfully deployed LoRaWAN networks. Its range, energy efficiency, and flexibility make it a popular solution for large-scale IoT applications in both urban and rural areas.

Smart Cities

Connected city solutions use the LoRaWAN protocol to monitor and manage the urban infrastructure. One example is intelligent street lighting, where sensors adjust illumination based on environmental conditions, significantly reducing energy and maintenance costs. Parking management is another application, with sensors detecting available spaces and transmitting the data to an app, enhancing traffic flow and reducing CO₂ emissions.

Agriculture

Farmers utilize LoRaWAN for efficiency and sustainability, known as precision agriculture. Sensors monitor soil moisture and nutrient levels, helping optimize irrigation and fertilizer use. This approach conserves water, reduces chemical application, minimizes environmental impact, and increases crop yields.

Logistics

Logistics 4.0 companies leverage LoRaWAN technology to advance the digitalization of logistics, monitoring supply chains and inventory through real-time sensors that track the location and condition of goods. Temperature and humidity sensors in cooling chains, for instance, ensure optimal transport conditions, enabling companies to respond quickly to issues and reduce losses.

Industry 4.0

LoRaWAN is also applied in industrial machinery monitoring. Sensors detect vibrations, temperatures, and other operational data before relaying this information to central systems. These insights enable predictive maintenance, preventing breakdowns, extending uptime, and improving operational efficiency. The technology can also be added gradually in existing production environments.

Comparing LoRaWAN to different IoT protocols

The Long Range Wide Area Network is one of many solutions available for the Internet of Things. Compared to NB-IoT or cellular networks, it excels in range and energy efficiency, making it ideal for large-scale applications with low data demands. In the following table, we compare the LoRaWAN protocol with other common IoT technologies:

Companies should choose LoRaWAN when implementing large-scale, energy-efficient IoT applications, for example, in agriculture, which require only small data volumes. For data-intensive or real-time applications, such as those in urban environments, technologies like cellular networks or NB-IoT might be better suited. NB-IoT is particularly suitable when connectivity via cellular infrastructure and strong indoor coverage are important. In contrast, Wi-Fi is ideal for small-scale applications within confined spaces, such as single buildings or building complexes.

LoRaWAN security measures for reliable data transmission

The Long Range Wide Area Network offers several security mechanisms for reliable data transmission, with two layers of encryption ensuring that communication between end devices and networks remains secure.

Encryption and data integrity

The first layer uses 128-bit AES encryption for transmission between devices and the network server, whereas the second layer provides end-to-end encryption between end devices and application servers, ensuring that data remains protected even during processing.

If the encryption is compromised, attackers could access sensitive data or manipulate network communication. Therefore, secure management and regular renewal of encryption are essential. Additionally, LoRaWAN verifies data integrity, ensuring that the received data matches the sent data. During transmission, the technology checks for any sudden changes. Altered data poses a risk to the LoRaWAN network, as it allows attackers easier access.

Device authentication and secure operation

To prevent unauthorized devices from accessing the network, each end device must be uniquely identified and authenticated. Weak or insecure authentication mechanisms create vulnerabilities and facilitate unauthorized access. Secure operation also requires sound key management, controlled device management, regular updates, clear access controls, and ongoing monitoring.

While a LoRaWAN network is well-protected by its robust architecture, physical attacks on the infrastructure cannot be ruled out. For example, jamming attacks, in which attackers disrupt the radio signal and block communication between devices, still remain a challenge for companies.

Conclusion: LoRaWAN as a future-proof solution for IoT applications

The LoRaWAN protocol is an energy-efficient, cost-effective, and flexible solution for IoT applications. Its long range, low operational costs, and extended battery life make it ideal for extensive use cases like Smart Cities and agriculture, whilst the network’s ease of implementation and strong security mechanisms reduce infrastructure costs, providing a high return on investment for businesses deploying IoT.

FAQ about LoRaWAN

What does LoRaWAN stand for?

The term LoRaWAN stands for Long Range Wide Area Network.

What does LoRaWAN mean?

LoRaWAN is a network protocol that enables low-power devices to communicate over long distances, making it ideal for widespread applications.

How does LoRaWAN work?

LoRaWAN transmits sensor data between IoT devices and a central server via gateways and radio frequencies.

What is the difference between LoRa and LoRaWAN?

LoRa is a radio technology for long-distance, low-power data transmission. LoRaWAN is the network protocol that manages data communication and organization within the network.

What can businesses do with LoRaWAN?

Businesses can use LoRaWAN for IoT applications like environmental monitoring, Smart Cities, agriculture, and logistics.

What do businesses need for LoRaWAN?

To implement LoRaWAN, businesses need end devices or sensors, gateways, a network server, and an application platform for data processing.
